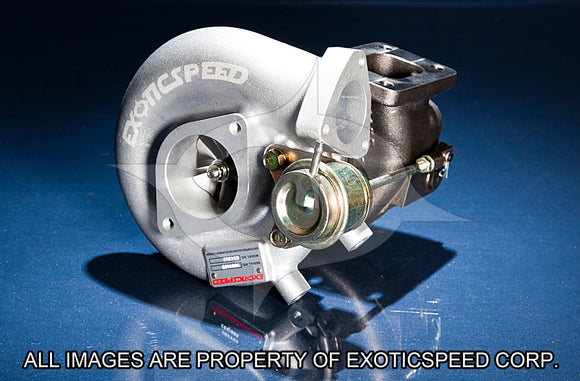

Exoticspeed ES400R Turbo

Feature:

• Bearing: Dual Ball Bearing
• Cooling: Oil and Water cooled
• Actuator rated: 1 bar
• Wastetgate housing: internally
• Power rated (HP): 300-400

COMPRESSOR

• INDUCER (mm): 50.5
• EXDUCER (mm): 68.0
• SIZE: 18G
• A/R: 0.57
• Wheel: Cast alloy
• Housing Inlet: 2 Bolt
• Housing outlet: 3 Bolt

TURBINE

• Inducer (mm): 56.0
• Exducer (mm): 49.20
• Wheel: TD05H
• Inlet: T25
• Discharge: 5 BOLT
• A/R: 8CM2
• Wheel Material: Inconel
