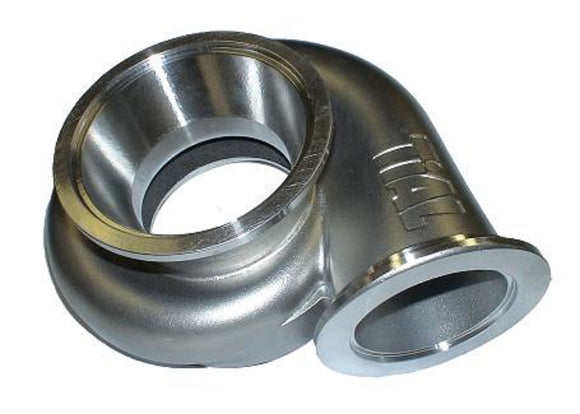

Tial Stainless Turbine Housing, V-band inlet and outlet, GT35/GTX35, 1.03A/R
- Typically lighter weight than a corresponding iron housing of the same A/R
- Investment cast stainless steel for a beautiful, smooth interior and exterior
- Vband inlet and outlet gets rid of gaskets and bolts, no leaks and no broken bolts
- Three A/R options
- Overall physical size is smaller than standard housing, allowing it to fit in tight engine bays
- Better heat retention than cast iron
- Inconel bolts provided for vibration and stretching resistance in extreme applications
- Locking tabs included for high vibration applications
- Pivoting of the turbo 360* possible
CONFIGURATION
GT35 Housing | Option |
Flange Materials | 304L Stainless |
Pipe Size | Inlet Flange: 2.125" OD, Outlet Flange: 3.00" OD |
Flanges/Clamps Included? | No |
Housing Weight | 6.7lbs (largest A/R) |
Turbine Wheel | 68mm 84 Trim |
